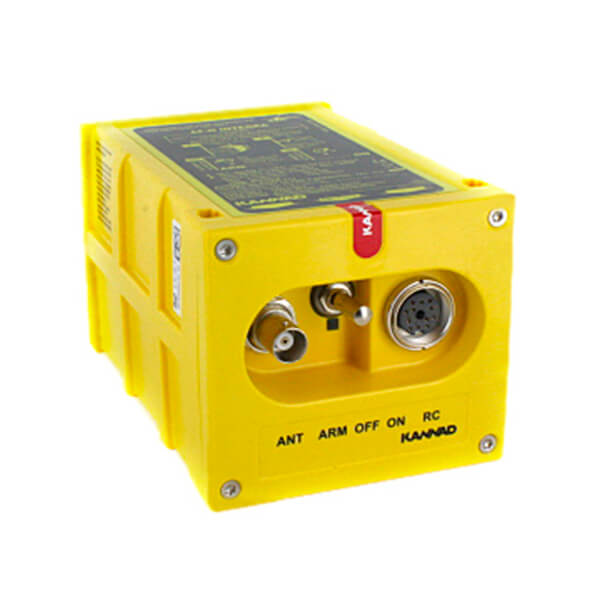

ELT, INTEGRA AF

“Automatic Fixed ELT: Type ELT(AF)
• Cospas-Sarsat Class II:
Operating Temperatures -20° to +55°C
• Two-frequency transmitter (121.5 / 406MHz):
406.037 MHz ,Operating Life time 24 hours at -20°C
121.5 Homing device, Operating Life time > 48 hours at -20°C
• 6 year battery life-time
• Short Circuit protection
• Internal GPS receiver with internal antenna
• Location input via RS232 NMEA interface
• Integral antenna transmitter
• Weight: 755 g. (max)
• Transmitter Dimensions: 131x 86 x 75.4 mm
• Overall Dimensions:
With Mounting Bracket AF COMPACT : 140 x 98x 86.4 mm
With COMPACT Universal Mounting Bracket; 175.12 x 99 .12 x 86.4 mm
With Mounting Bracket INTEGRA AF:140 x 98 x 16 mm
Applications
• Fixed wing aircraft
• Can also suit helicopters, but with a special
mounting tray (45° nose down)”
